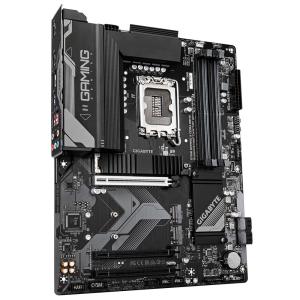

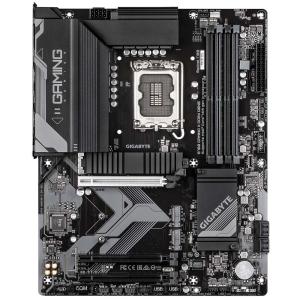

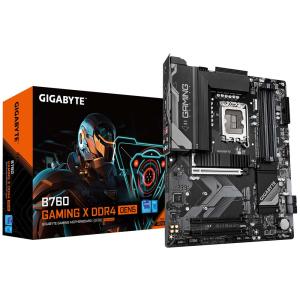

GIGABYTE B760 GAMING X DDR4 GEN5 ATXマザーボード｜B760 GAMING X D4 GEN5 - ショッピング・ショップ | 通販検索

20250605NEWGIGABYTE

商品説明

[特徴]

・第 14 / 13 / 12 世代 Intel Core プロセッサー対応

・PCIe Gen5 対応：PCIe 5.0 x16 スロット搭載

・8+1+1 Hybrid 電源フェーズ設計

・Dual Channel DDR4：4 スロット搭載 (XMP 対応)

・優れた放熱性：VRM 用 Thermal Armor Advanced & M.2 Thermal Guard ヒートシンク

・高速ネットワーク：2.5 GbE 有線 LAN

・充実した接続性：フロント USB-C 10Gb/s, HDMI & DisplayPort 搭載

[仕様]

対応 CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU チップセット Intel B760 Express Chipset メモリー Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) 映像出力端子 Integrated Graphics Processor-Intel HD Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.) オーディオ Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out 有線 LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 拡張スロット CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) ストレージ端子 CPU:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB 端子 Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 内部入出力端子 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper バックパネル端子 1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C port, with USB 3.2 Gen 1 support

2 x USB 3.2 Gen 1 ports

5 x USB 2.0/1.1 ports

1 x DisplayPort (Note)

1 x HDMI port (Note)

1 x RJ-45 port

6 x audio jacks

(Note) Actual support may vary by CPU. I/O コントローラー iTE I/O Controller Chip ハードウェア・モニター Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 独自機能 Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup バンドル・ソフトウェア Norton Internet Security (OEM version) 対応 OS Support for Windows 11 64-bit

Support for Windows 10 64-bit フォームファクター ATX Form Factor; 30.5cm x 24.4cm

JAN：4719331873448
